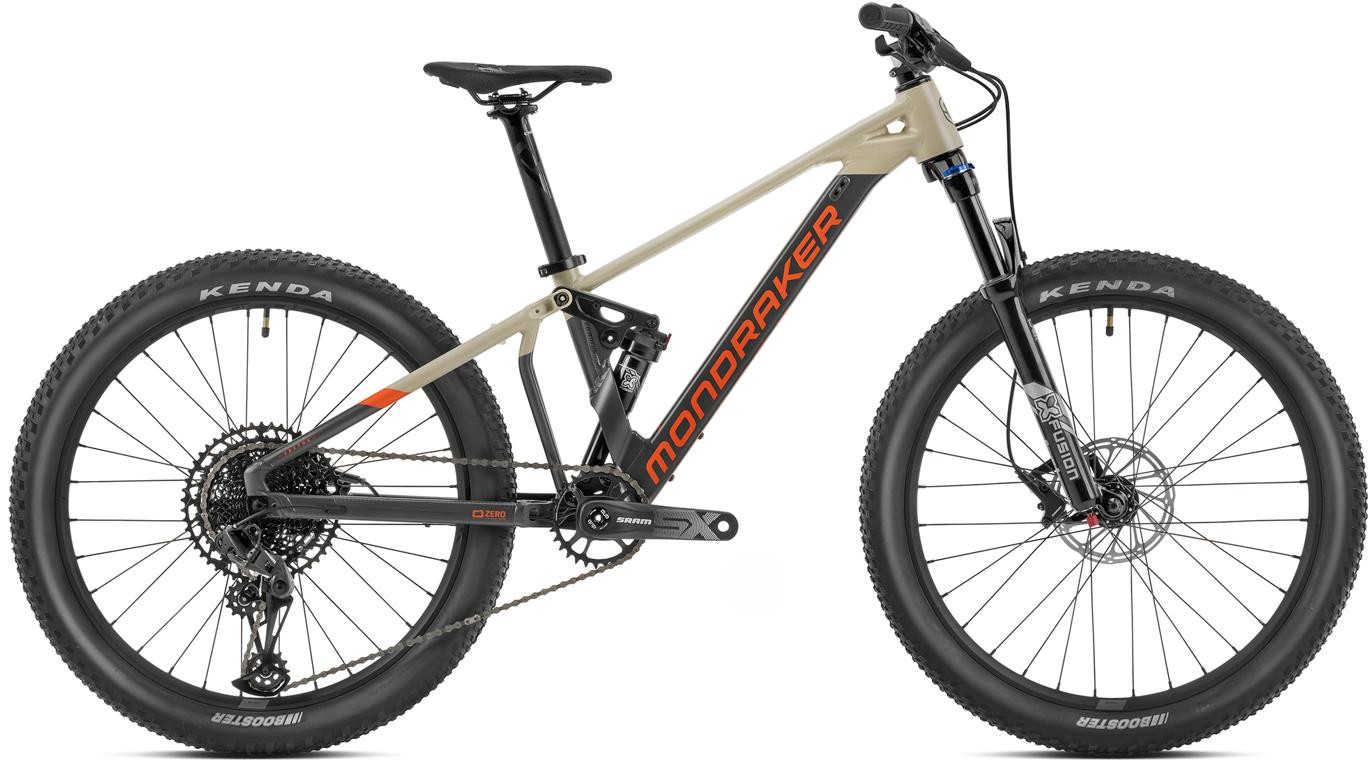

Mondraker Factor 24 2023 2023 - Downhill Full Suspension MTB Bike
THE SUM OF MONDRAKER'S KNOWLEDGE AND DNA
The sum of Mondraker's knowledge and DNA concentrated into a smaller package make the Factor 24 a true mountain bike, just smaller. Its lightweight frame made of 6061 STEALTH EVO aluminium rocks our ZERO SUSPENSION SYSTEM characterized by its excellent performance whether going up-hill or down. What’s more, its light weight and agility make the bike fun to ride and let the rider take full advantage of the 100mm of suspension travel front and back. Don’t forget that when they grow a little you can swap out the 24" wheels for some 26" ones, thus extending the useful life of the bike.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Factor 24 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 100mm travel, one piece bolt-on upper link, QR 9mm rear axle, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design. 26" wheelset compatible |
| Fork | X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
| Rear Shock | X-Fusion 02PRO R, 210x47.5mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Level, tooled reach adjust, lever pivot bushings |
| Rear Mech | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| Shifters | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Speed | 12 |
| Rims | MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Front Hub | Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Formula DC22LW 9x135mm, cup & cone ball bearings, IS 6 bolts |
| Spokes | CN round stainless steel |
| Front Tyre | Kenda Booster 24x2.4 single compound 30TPI, wire bead |
| Rear Tyre | Kenda Booster 24x2.4 single compound 30TPI, wire bead |
| Seat Post | ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
| Saddle | SDG Fly JR |
| Chainset | Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm . 30T, steel, X-Sync |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Cassette | Sram PG-1230, 11-50T, 12s |
| Pedals | Resin Platform |
Junior Bike Size Chart
|
Approx. Age |
Height (cm) |
Type / Wheel Size |
|
1 - 4 |
77 – 105cm |
Balance |
|
2 - 4 |
85 – 105cm |
12" |
|
4 - 6 |
105 – 117cm |
14" |
|
5 - 7 |
112 – 125cm |
16” |
|
6 - 8 |
117 – 132cm |
18” |
|
7 - 10 |
125 – 136cm |
20” |
|
10+ |
136+cm |
24” |
Read our kids bike size guide for more information on kids bike sizing.
